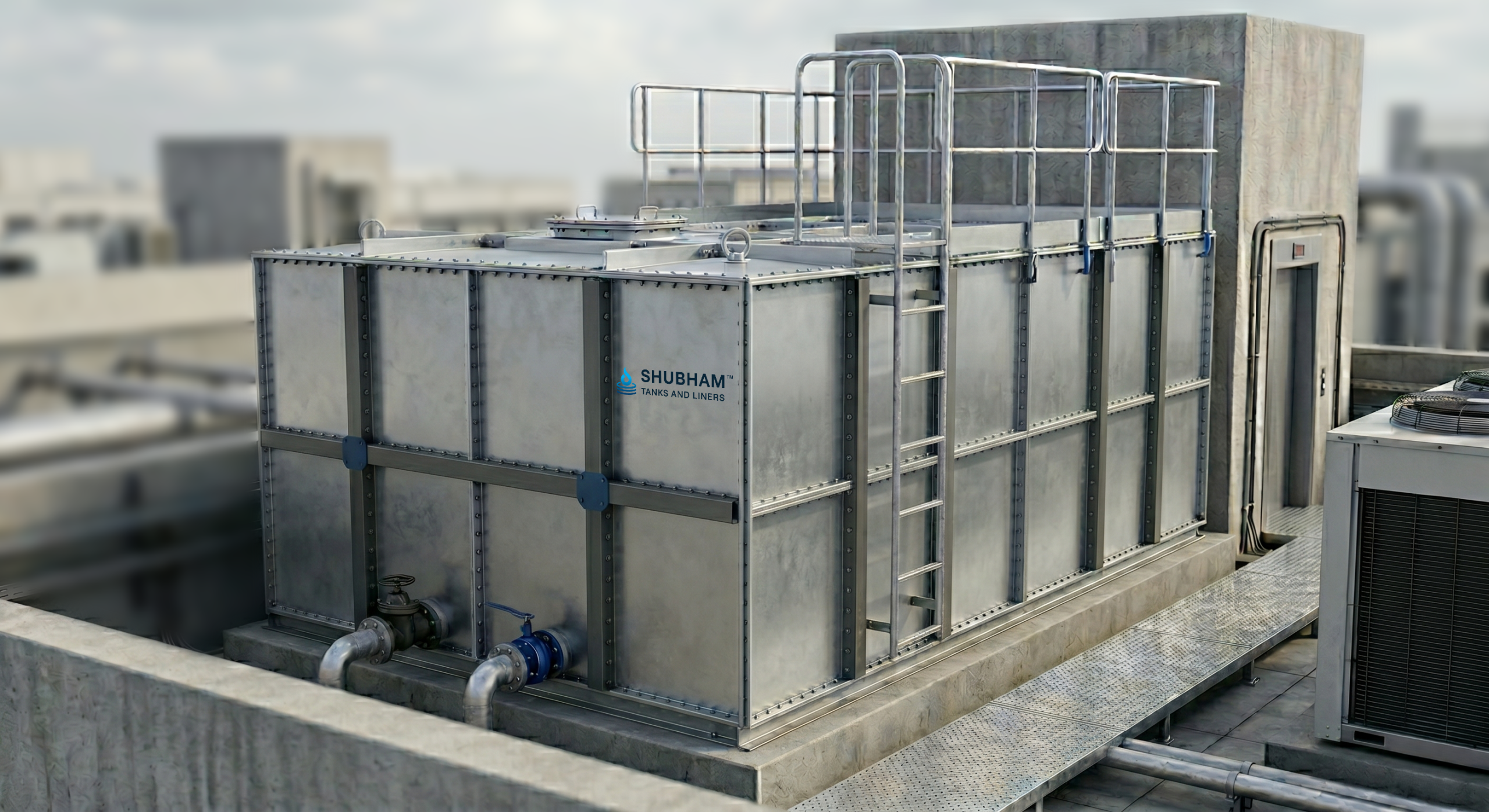

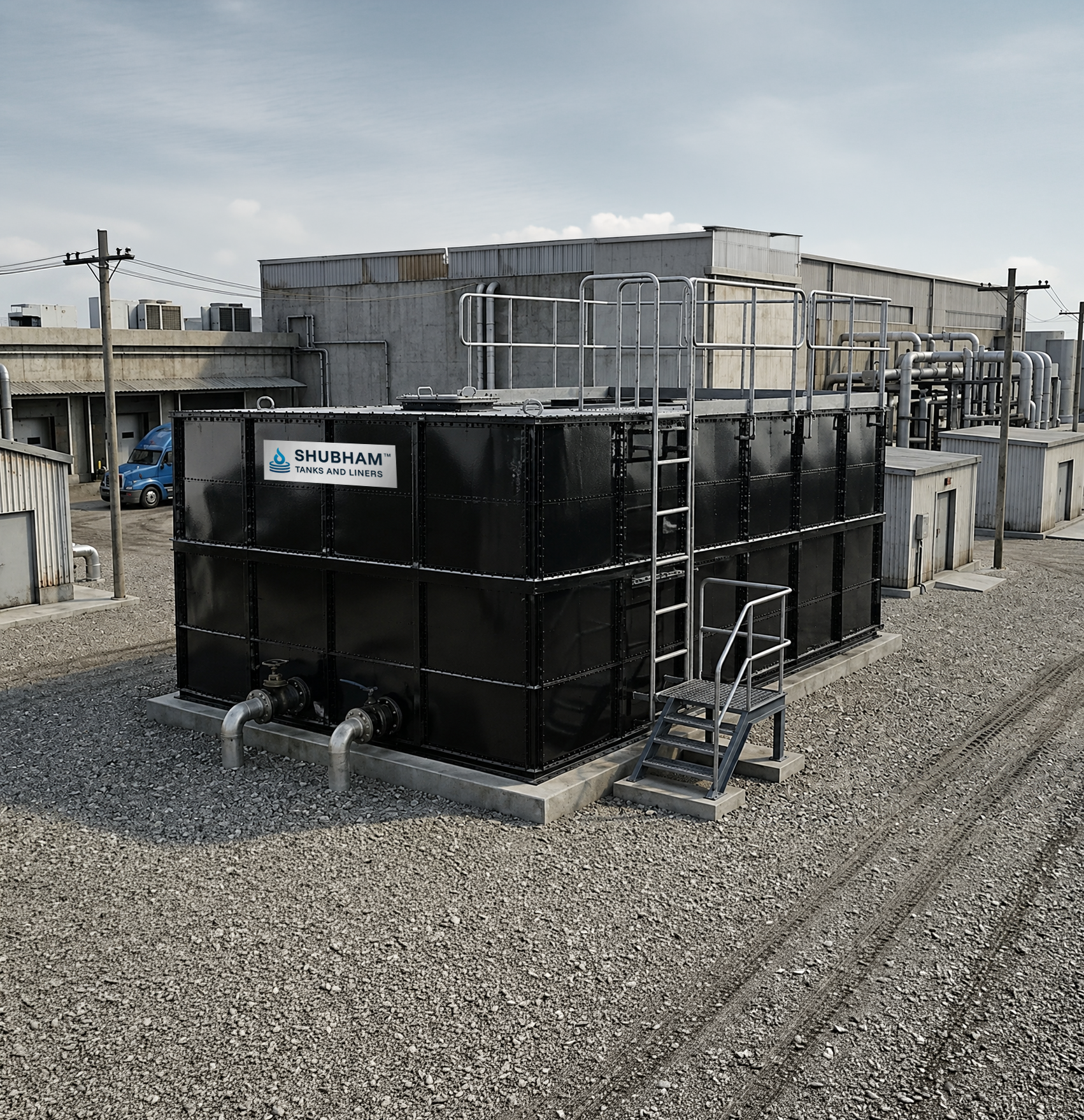

Shubham Square and Rectangular Tanks
A smart, space-efficient alternative to traditional tank systems, STLPL’s Square & Rectangular Tanks are built using advanced modular panel technology, allowing seamless installation even in restricted, irregular, or high-density project environments.
With the ability to customize dimensions, scale capacity, and adapt to complex layouts, these tanks deliver maximum utility without sacrificing performance or durability.
Key Features
Space Optimization Design
Perfect for sites where circular tanks are impractical due to limited or confined space availability
Modular Panel Construction
Built using standardized 1m x 1m panels, enabling flexibility in length, width, and height
Wide Capacity Range
Configurable from 1 KL to 720 KL, suitable for diverse applications
High-Performance Material Options
- GI (Galvanized Iron) – Cost-effective and dependable
- SST (SECURESTORE™ Technology) – Enhanced corrosion resistance and extended lifecycle
Flexible Configuration
Fully customizable to match site-specific layouts and design constraints
Technical Specifications
Panel Size
1000 mm × 1000 mm
Tank Shape
Square / Rectangular
Capacity Range
1 KL to 720 KL
Panel Thickness
Designed as per tank height and load requirements
Coating Options
GI / SST (SECURESTORE™)
Liner Options
Potable Grade Infinity Liner
Support Structure
MS hot-dip galvanized
Joint Sealing
Industrial-grade sealants with precision bolted connections
Let’s Engineer Your Storage Solution
Since inception, Shubham Tanks has focused on precision manufacturing, durable materials, and long-term performance.
